1、 Basic Introduction

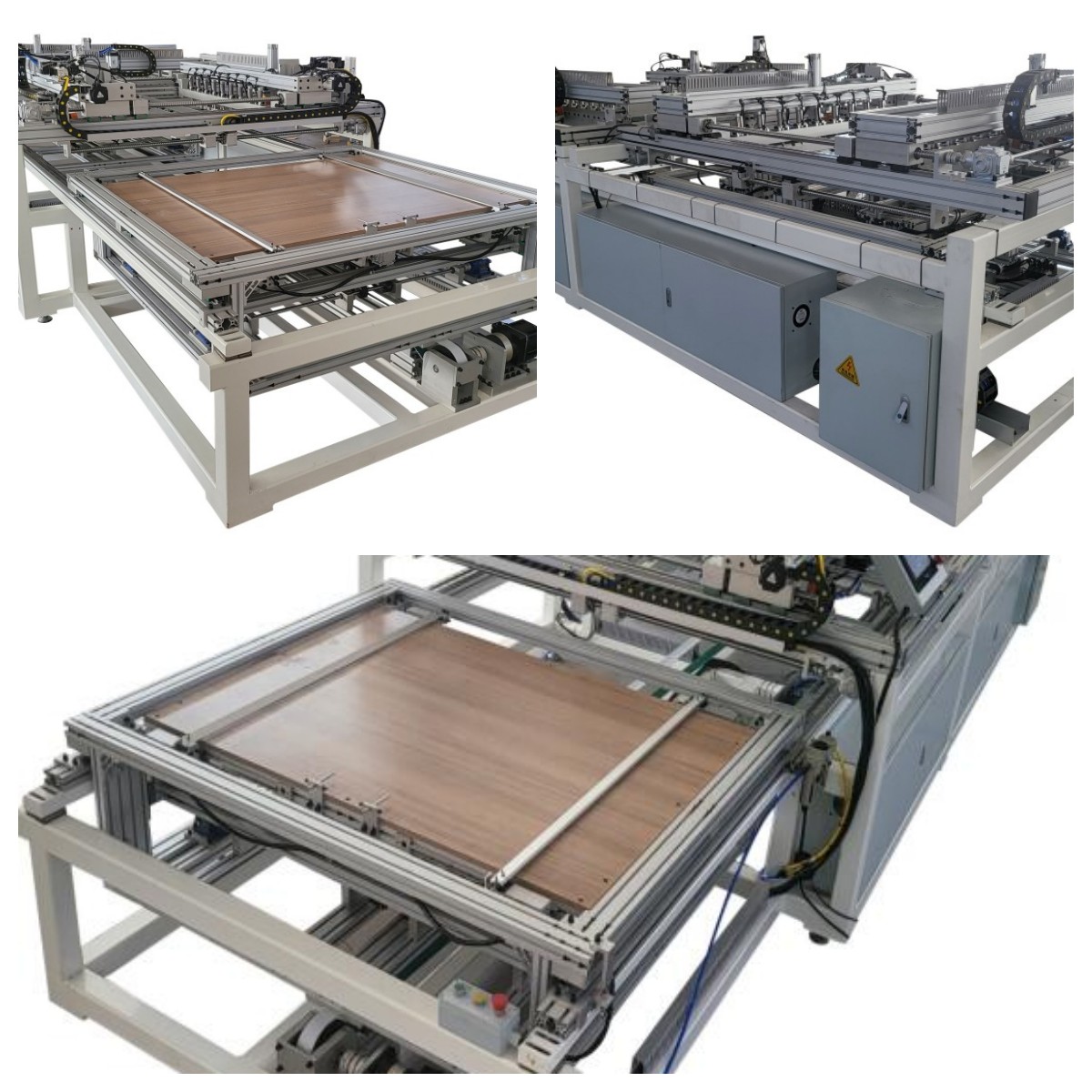

The A6-1000 automatic framing machine produced by Allio adopts a dual station production line mode, suitable for large-scale framing and nailing in the canvas painting industry such as large-sized oil painting frames, decorative paintings, and digital oil paintings. It has the advantages of simple operation, fast movement, automatic folding, good framing quality, low energy consumption, and easy maintenance. It adopts a forward and backward design, and can directly produce products with one feeding, greatly improving the quality and production efficiency of framing and nailing, Especially suitable for frames with longer edges, effectively reducing labor costs for enterprises and ensuring the predictability of production capacity and delivery fulfillment rate. Other specifications can be customized as needed.

2、 System functions

The A6-1000 automatic framing machine is composed of core modules such as a variable limit moving platform, automatic tensioning system, automatic folding system, servo nailing system, and automatic nailing station. The system has adjustable slow tightening function (which is conducive to the full extension of canvas fibers to avoid frame looseness) and segmented tightening function (to compensate for the stroke caused by local deformation and loss of the frame), which can be operated by a general worker. The system can automatically adjust the length and width of the product High, number of nails, nail position and tension stroke can save and call the commonly used product production parameters. The machine loading platform is reciprocating, and each operation is opposite side tension nails. The nailing parameters of the long and short sides can be alternately switched. The system can automatically count the output, view the warning information when the equipment is abnormal, and switch to the Debug menu to jog the module during maintenance.

3、 Operating instructions

The operator places the canvas and frame in the designated position as required, presses the start button, and the system loading platform quickly transfers the materials to the first nailing station for nail tightening operation. Then, the system transfers the materials from the first nailing station to the second nailing station, and the folding is automatically completed during the transfer process. At the same time, the loading platform synchronously loads materials to the first station. The dual station design of the equipment can effectively improve production efficiency and reduce labor costs, Output qualified products and operate the equipment easily. Normal workers only need a brief explanation to operate the equipment. Maintenance and mold replacement of the equipment are the responsibility of professional personnel. If there is a malfunction that cannot be resolved, please contact us.

4、 Technical parameters

5、 After sales service

1. After product delivery, we provide a three month free warranty (hardware only), online technical support, and detailed maintenance video materials. We can also make an appointment with engineers for online communication and guidance.

2. Foreign customers provide a set of vulnerable parts and accessories, and additional repair parts can be provided within six months. Users only pay for shipping costs.
